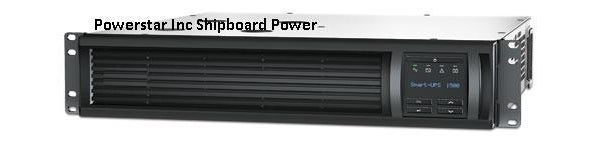

The Powerstar PS60000rm2u is used in a variety of naval and maritime settings, including, oil spars, deep water drilling platforms, cruise ships, tugs, yachts and any ocean-going vessels.
- Ruggedization available if used in shock / vibration locations
- We use APC© brand SMT electronics
- This version has a two-line alphanumeric text readout giving V,I, W, VA, est. runtime, and alarms
- Long-life, ten-year batteries available
Also available:
- PS6002rm2uSMT 2.2KVA/1,980W 3.5in H x 17in W x 26.9in D
- PS6003rm2uSMT 3KVA /2,700W 3.5in H x 17in W x 26.9in D
- Powerchute© Shutdown software is freely available for many OS, including Virtual computers. PS9630 Network card optional
Output
- Output power capacity 1,000W/1,440 VA
- Nominal output voltage 120V, i model 230V Euro voltage Model Available PS6000irm2u
- Euro output is selectable from 220V, 230V or 240V.
- Efficiency at full load 97%; >96%@ 30% load
- Output voltage distortion < Less than 5% at full load
- Output frequency (sync to mains) 47Hz – 53Hz for 50Hz nominal, 57Hz – 63Hz for 60Hz nominal
- Crest Factor up to 5: 1
- Full Sine wave waveform
- Line Interactive style UPS switches to Inverter in 2ms-4ms (that is less than ¼ of a cycle)
- This unit performs automatic bi weekly tests on its inverter and does a battery load test to find bad batteries before they fail on you. Status display will predict battery life from external conditions.
- Output Connections (6) 5-15R or optional Mil spec. (or you can specify)
- Variable speed fan is very quiet
Batteries and runtime
- Battery type VRLA 3-5 year life expectancy (8-10 year premium battery available)
- Maintenance-free, sealed lead-acid battery with suspended electrolyte: leakproof
- Optional Premium 8-10 year higher temperature -20° to 60°C discharge rated batteries available
- Typical backup time at half load 25.8min (500W)
- Typical backup time at full load 7.2min (1,000W)
Communications and management
- Interface Port(s)
- RS-232 via S20 /RJ50x- adapt to DB9 with dongle using Microlink protocol that is used in Powerchute®
- USB port- Powerchute® capable,
- Emergency Power Off dry contacts optional
- 1ea. available SmartSlot™ Interface -accepts these optional
- extra cost cards:
- PS9630 SNMP Network card (Ethernet)
- PS9631 Environmental monitor/ SNMP/Dry Contact card
- PS9613 dry contact card
- PS9620 previous generation (SUA) DB9 serial port Legacy Card
Physical
- Maximum height 89mm
- Maximum width 432mm
- Maximum depth 457mm
- Rack Height 2U
- Net Weight 28.64kg
- Shipping Weight 31.91kg
- Shipping Height 251mm
- Shipping Width 594mm
- Shipping Depth 603mm
- 16 units per pallet
- Steel Rail kit for four-post 19in rack is included with mounting hardware
- Audible noise at 1m from surface of unit 46 dBA
- Online Thermal Dissipation 90 BTU/h
