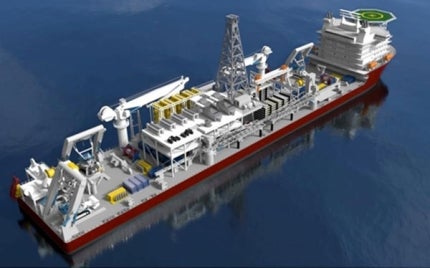

Marine Assets Corporation’s (MAC) Seabed Mining Vessel

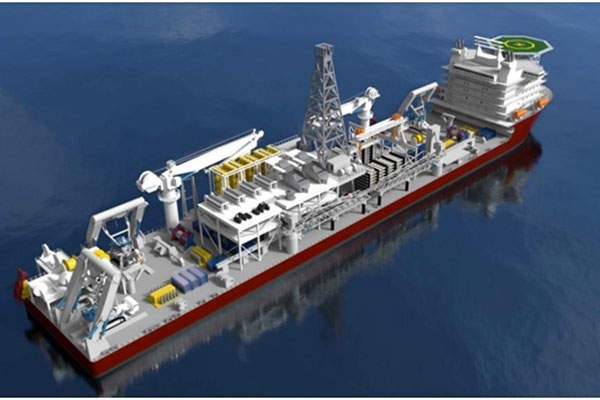

The world's first seabed mining vessel to be used for subsea mining is being built by Fujian Mawei Shipbuilding. Image courtesy of Sea Tech Solutions International.

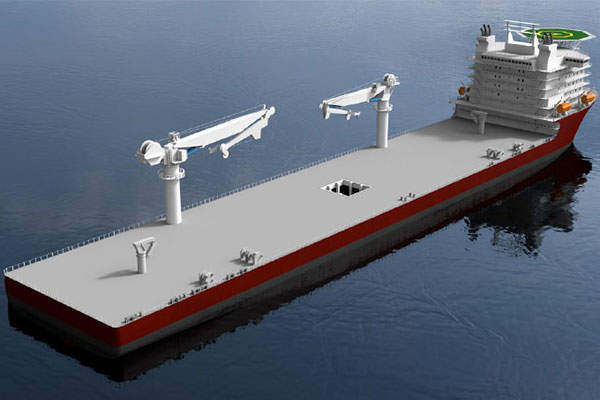

Rendering of the bareboat of the subsea mining vessel. Image courtesy of Marine Assets Corporation (MAC).

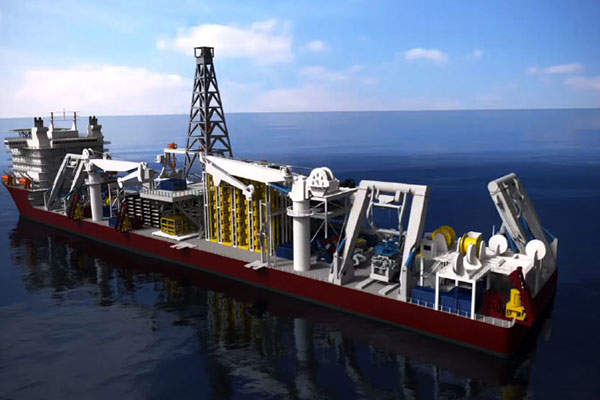

Computer rendition of MAC’s offshore construction vessel in production mode. Image courtesy of Marine Assets Corporation (MAC).

The vessel will act as a base to mine copper, silver and gold from the seabed. Image courtesy of Nautilus Minerals/ODT.

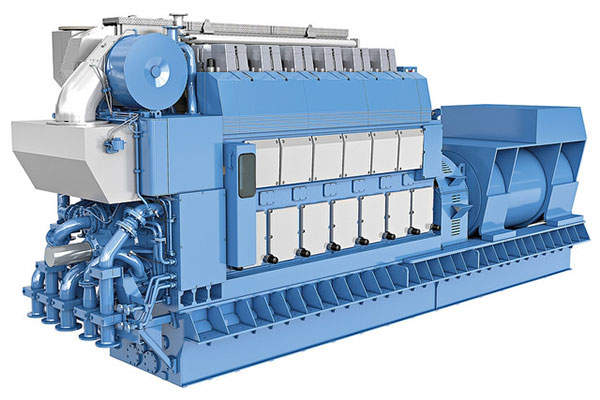

The B33:45 engine is supplied by Rolls Royce for MAC’s offshore construction vessel. Image courtesy of Rolls Royce.

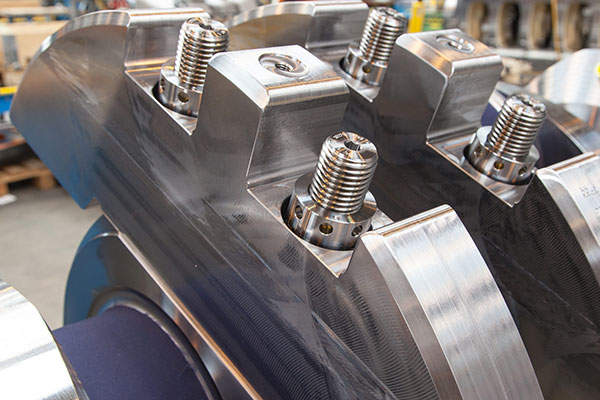

The B33:45 engine is designed for 25,000h of operation between major maintenance. Image courtesy of Rolls Royce.

Nautilus will use the vessel at its Solwara-1 project located in the Bismarck Sea, offshore Papua New Guinea (PNG). Image courtesy of Nautilus Minerals/ODT.

The world’s first seabed mining vessel is being built by Chinese shipbuilder Fujian Mawei Shipbuilding for Dubai-based marine solutions company Marine Assets Corporation (MAC). The vessel will serve Nautilus Minerals (Nautilus), a mining explorer and developer based in Toronto, Canada.

MAC and Nautilus entered into a five-year charter agreement for the vessel in November 2014, which includes an option to either extend the charter or purchase the vessel at the end of the contract period.

Nautilus will use the vessel as a floating base for its subsea mining operations at the Solwara-1 project located in the Bismarck Sea, offshore Papua New Guinea (PNG). It will extract copper, gold, silver and ore from the seabed at water depths of 1,600m. MAC will own and provide marine management services for the vessel.

Construction of the world’s first seabed mining vessel

The shipbuilding contract of the vessel was awarded to Fujian Mawei Shipbuilding in November 2014. The contractual scope includes vessel construction according to Nautilus’ specifications.

The vessel will be built at Mawei’s shipyard and is scheduled delivery by the end of 2017.

Design of the deep sea mining vessel

The basic design for the seabed mining vessel is provided by SeaTech Solutions International, a marine designs specialist based in Singapore.

The vessel will be 227m-long and 40m-wide, and will be a completely outfitted and equipped offshore construction vessel (OCV) suitable for global operations. It will comply with the Tier III regulations and be able to perform duties in emission control areas (ECA). It will be classified as ABS DPS – 2 EHS – F dynamically positioned vessel.

Equipment onboard the deep sea mining vessel

The world’s first seabed mining vessel will be fitted with two main cranes, a 200t AHC subsea crane and a 100t ship-to-ship crane.

Seafloor production equipment (SPE) aboard the ship will include specialised seafloor production tools (SPTs) such as riser and lifting system comprising a subsea pump, riser system and associated handling systems.

The ship will also feature an onboard ore storage at its centre, which will be supported by a cargo handling system for transferring the ore directly to and from the holds to incoming bulk carriers. Mining equipment will be installed in the lower deck of the vessel.

Accommodation aboard the mining vessel

The vessel is designed in accordance with American Bureau of Shipping’s (ABS) Comfort Class notation. The bridge deck will be built to meet the ABS class notation of offshore vessels and suitable for unrestricted operation. It will accommodate 180 people onboard.

Engine and propulsion

Rolls Royce will supply engine and thruster package for the new vessel. It will deliver six B33:45L9A medium-speed 5,000kW main engines, three 3,000kW azimuth stern underwater mountable thrusters, two 3,500kW drop-down azimuth bow thrusters, and two 200kW tunnel thrusters.

It secured the order from Mawei in March 2015, marking the first multiple order for the B33:45 engine since its introduction in September 2014. Deliveries of the equipment will begin in March 2016.

The engine features Tier III-compliant selective catalyst reduction technology and offers a 20% increase in power in each cylinder, optimised fuel consumption, reduced emissions and reduced through-life operating costs. The vessel will also be fitted with a diesel-electric power distribution system.
